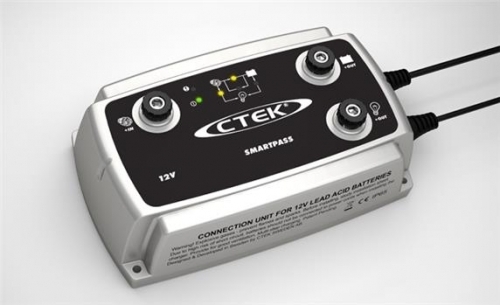

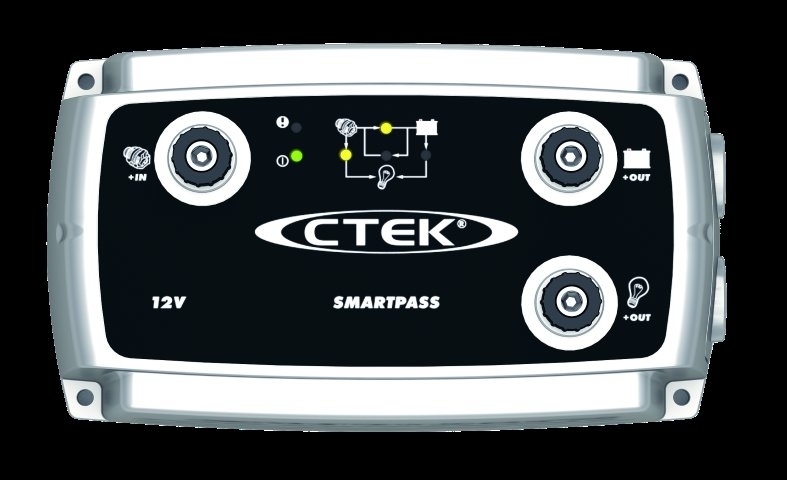

SmartPass is an energy management unit designed to work with the CTEK D250S Dual which controls and optimises energy produced by alternators, solar cells, wind power or conventional AC/DC chargers, and distributes it to the battery banks or consumers which require energy, such as the deep cycle bank, bow thruster batteries, consumers, etc.
Used together with a D250S Dual, SmartPass provides optimal charging (up to 50amps) via CTEK's unique staged charging cycle, which also protects your batteries. SmartPass also has an integrated 'battery guard' which protects deep cycle batteries from harmful total discharge and ensures that critical equipment such as radio, emergency lights and navigation systems always function. SmartPass has a temperature sensor which protects batteries against high temperatures.
SmartPass is a fully automatic energy management system which can handle up to 80A for batteries of between 28-800Ah. The energy management system is IP65 classified (water jet and dust protected and approved for outdoor use). Suitable for all types of 12V lead-acid batteries.
The CTEK SmartPass is only compatible with the CTEK D250S Dual and is not a stand alone charger.
Features
- Boost battery performance.
- Minimises charge time with capacity to charge up to 80A.
- Provides 10A auxilllary battery power and will isolate the auxillary battery at 11.6v via the built in Voltage Sensitive Relay.
(100391)
- Boost battery performance
- Minimises charge time with capacity to charge up to 80A
- Provides 10A auxilllary battery power and will isolate the auxillary battery at 11.6v via the built in Voltage Sensitive Relay.
- Charging Current 80 A
- Type Of Battery 12 V Lead-acid Batteries
- Battery Capacity 200 - 800 Ah
- Insulation IP65
- Dimensions (L x W x H) 197 x 93 x 49mm
- Warranty 2 years
SKU | 100391 |
Model # | CTSMARTPASS |
Brand | Baintech |
Shipping Weight | 1.0500kg |
