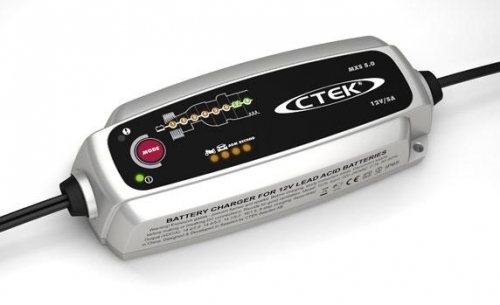

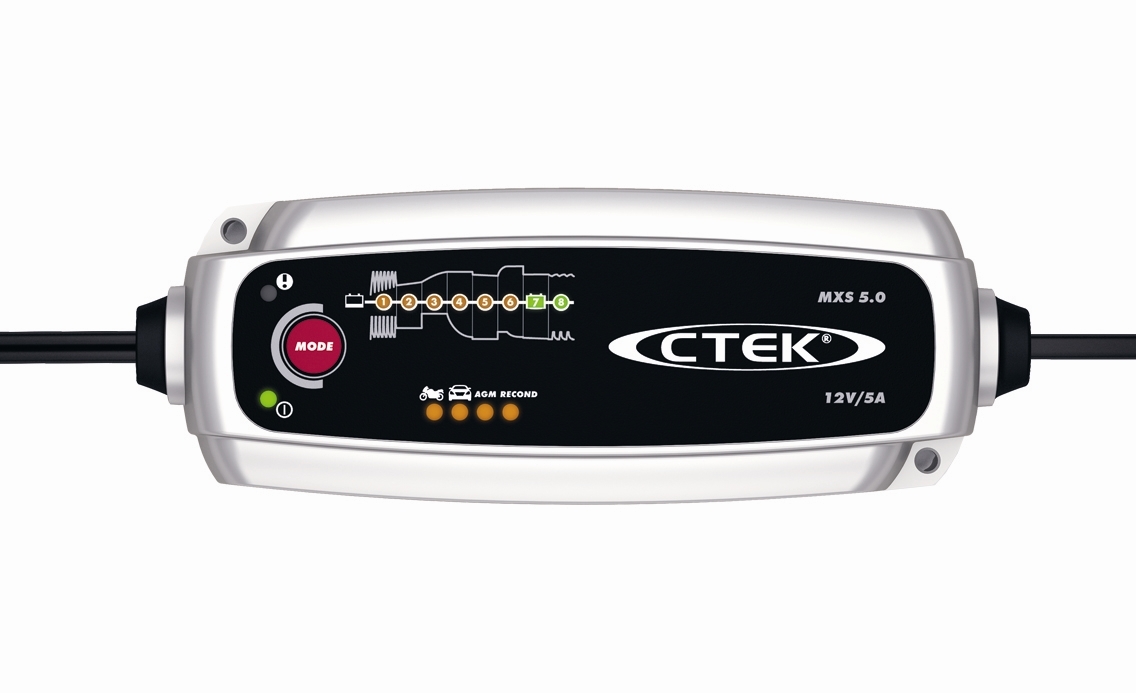

CTEK MXS 5.0 Battery Charger 12V 5A

$114.00
RRP $163.25
SAVE $49.25 (30%)
Sold Out


Calculate Shipping

The MXS 5.0 charger takes the award-winning MXS 4003 platform to the next level, with all of the important functions but with one whole ampere more than its predecessor. MXS 5.0 solves all battery-related problems that can be remedied before a battery must be discarded. It is a perfect charger for anyone who has high demands and expects effective, reliable and versatile usage. It has been developed with a function for analysing if the battery can be charged and if it can maintain the charge – an extremely important function for obtaining a reliable battery addition to being a little workhorse that produces rapid high-quality charging and mild and energy-efficient maintenance charging.

The MXS 5.0 also has other important functions. One example is the special reconditioning function that restores stratified and deeply discharged batteries. There is also an important function to face up to the tough demands associated with loading in severe cold and the demands associated with effective charging of AGM batteries. This type of battery, such as Optima, is often found in sport and high-performance vehicles.he entire process of CTEK's patented 8-step charging can be followed on the unique Display, which communicates effectively with the user.here are also two different choices for 12V batteries – one for 0.8A charging and one for 5A charging. This makes it possible to charge smaller batteries, such as MC, scooter and jet ski batteries, both effectively and gently. The extra 1A enables the charger to charge batteries from 1.2 Ah up to 110 Ah, or to handle maintenance charging of as much as 160 Ah.

(100393)

  • Safe and easy to use
  • Battery Capacity for charging 1.2–110Ah, up to 160Ah for maintenance
  • Reconditioning mode
  • Unique 8 step charging
  • Temperatuer sensor
  • Cold Weather / AGM mode
  • Suitable for charging large batteries

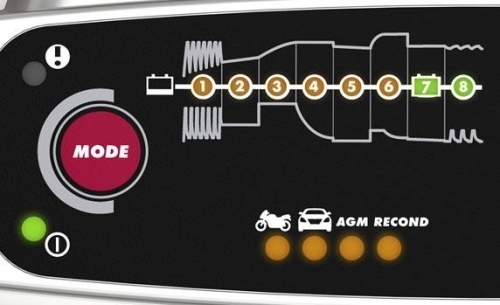

8 Steps as Follows:

  • STEP 1 DESULPHATION Pulsing voltage removes sulphates from the lead plates of the battery restoring the battery capacity.
  • STEP 2 SOFT START Tests if the battery can accept charge. Charging begins if the battery is OK.
  • STEP 3 BULK Charging with maximum current until approximately 80 % battery capacity.
  • STEP 4 ABSORPTION, BATTERY READY TO USE Charging with declining current to maximize up to 100 % battery capacity.
  • STEP 5 ANALYSE Tests if the battery can hold charge. Batteries that cannot hold charge may need to be replaced.
  • STEP 6 RECOND Reconditioning function for deeply discharged batteries.
  • STEP 7 FLOAT, BATTERY FULLY CHARGED Maintaining the battery voltage at maximum level by providing a constant voltage charge.
  • STEP 8 PULSE, MAINTENANCE CHARGING Maintaining the battery at 95–100 % capacity. The charger monitors the battery voltage and gives a pulse when necessary to keep the battery fully charged.
  • Charging Voltage 14.4/14.7/15.8 V
  • Charging Current Max 5 A
  • Type Of Charger 8 step, fully automatic charging cycle
  • Type Of Battery 12 V Lead-acid Batteries
  • Battery Capacity 1.2 - 110 Ah, up to 160 Ah for maintenance
  • Insulation IP65
  • Dimensions (L x W x H) 168 x 65 x 38mm
  • Warranty 5 years
SKU 100393
Model # CT5000/12
Brand Baintech
Shipping Weight 0.6700kg
Shipping Width 14.000m
Shipping Height 5.000m
Shipping Length 27.000m
Shipping Cubic 1890.000000000m3
